Rapid Deployment
Designed for fast setup where time matters, from mobile ground control stations to field-ready command environments.
Mission Computing Platform
A field-ready portable hardware platform for solution providers who need to turn software capability into deployable mission systems.
For solution providers
DuraPAC is positioned for solution providers, defense integrators and mission system teams that need rugged hardware as a key component inside larger command, control, simulation, anti-drone or geospatial solutions. Rather than emphasizing components first, the platform is presented around deployment speed, operator visibility, field reliability and configuration flexibility.
Designed for fast setup where time matters, from mobile ground control stations to field-ready command environments.
Computing, display, expansion and operator interface are integrated into one transportable platform to reduce setup complexity.
Single or multi-display configurations help operators monitor software, sensors, maps and mission data in one compact workspace.
Built for mobile and harsh operating environments while remaining practical to transport, deploy and maintain.
Hardware configuration can be adapted around the solution provider's software stack, I/O needs and operator workflow.
A proven rugged platform approach from a manufacturer supporting military and prime contractor requirements for decades.
Mission scenarios
The goal is to support the solution provider's operational workflow, not to sell a generic PC. Technical specifications remain available for engineering review.
Portable command workstations for field operations, mobile command posts and distributed mission environments.
Multi-screen visibility for sensor feeds, control software, mapping, detection and response workflows.
Transportable compute and display platforms for simulation, rehearsal and mobile training scenarios.
A rugged operator platform for mapping, analysis and field-deployable mission data applications.
Platform confidence
ACME Portable systems are not positioned here as ordinary PCs. They are hardware platforms that help solution providers operationalize specialized software in environments where setup time, reliability and adaptability matter.

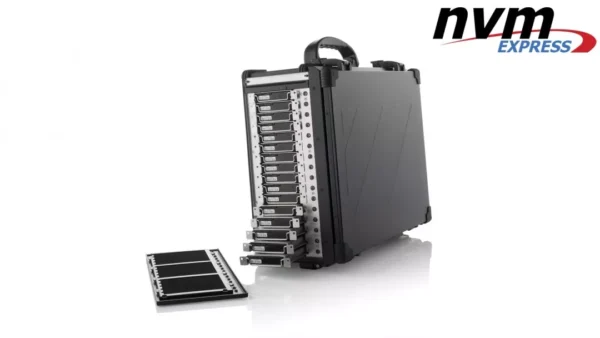

What separates the NetPAC from the rest is its massive storage. This portable computer supports up to 16 removable 2.5" removable drive bays for a total of 80 TB storage. In addition to massive storage, these hot swappable HDD/SSD make for easy transfer, upgrade, and maintenance.
The NetPAC is integrated with high speed 12Gb/s RAID card and media for the fastest data sequential write performance. It has been designed from ground up to meet the requirements on cooling, massive storage expansion and serviceability.
When you combine the massive storage, high-speed RAID card, and great cooling, the NetPAC simply becomes a powerful network appliance platform. It is an all-in-one portable form factor that can be integrated with high-performance 20G/40G network capture cards. As a result, it is capable of sustained, multi-gigabit per second recording of network traffic without packet drops.
A compact comparison is available for engineering review, but the primary product story is now focused on deployment value and mission fit.
NetPAC |
DuraPAC |

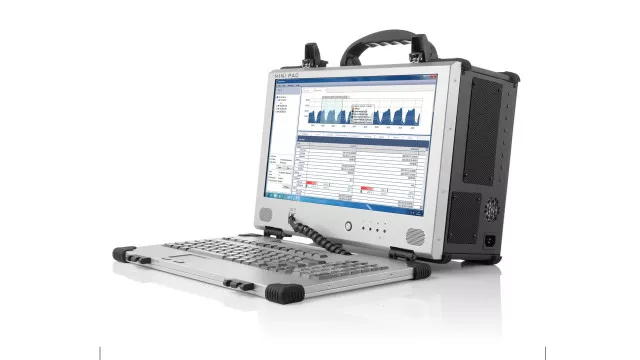

NetPAC Lite |
|
|---|---|---|---|
| Display |
17.3" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option |
17.3" FHD 1920x1080 - 300 nits Upgradable options: |
15.6" Full HD 1920 x 1080 |
| CPU |
Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™ |
Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, or AMD Ryzen™ 7 |
Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™ |
| Memory |
Up to 1TB DDR5 RAM |
Up to 2TB DDR5 RAM |
Up to 768GB DDR5 RAM |
| Graphics Card |
Integrated HD graphic controller |
Integrated HD graphic controller |
Integrated HD graphic controller |
| Expansion Slots |
Up to 5 |
Up to 4 |
Up to 4 |
| Storage |
16x Removable Storage Drives - Up to 80TB |
Up to 36TB (Removable Option Available) |
8x Removable Storage Drives - Up to 60TB |
| Power Supply |
680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply |
680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated Power Supply |
400W 100-240V 47-63 Hz 80PLUS Power Supply |
| Dimensions |
Height: 14.68" (373mm) |
Height: 13.62" (346mm) |
Height: 10" (254mm) |
| Weight |
~32 lbs (14.5kg) |
~23 lbs (10.4kg) |
~16.5 lbs (7.5kg) |
| Customization |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
| Product | NetPAC |
|---|---|
| Display | 17.3" FHD 1920x1080 - 300 nits |
| CPU | Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™ |
| Memory | Up to 1TB DDR5 RAM |
| Graphics Card | Integrated HD graphic controller |
| Expansion Slots | Up to 5 |
| Storage | 16x Removable Storage Drives - Up to 80TB |
| Power Supply | 680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply |
| Dimensions | Height: 14.68" (373mm) |
| Weight | ~32 lbs (14.5kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |

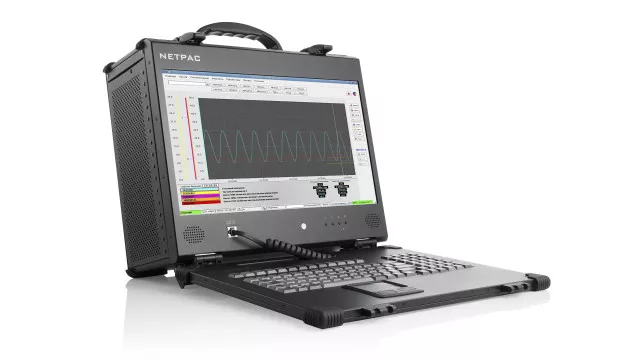

Next-generation, high-density storage workstation with up to 5 expansion slots. With up to 80 TB of storage, this portable computer is ideal for post production or test and measurement.
The NetPAC is your next-generation portable server for network monitoring, capturing, and analysis. This server has been designed from the ground up to meet the applications’ requirements on cooling, massive storage expansion and serviceability. Fully integrated with enterprise class SAS drives and RAID controller with up to 12Gb/s throughput per port, the NetPAC is the most powerful network appliance portable platform. When integrated with high-performance 1GbE, 10GbE, and 20GbE capture cards, it is capable of sustained, multi-gigabit per second recording of network traffic without packet drops.
The NetPAC simply provides an effective and indispensable platform for the manipulation and in-depth analysis of network traffic recording applications.
| Product | NetPAC |
| Display | 17.3" FHD 1920x1080 - 300 nits Upgradable options: 1000 nits, UHD 3840x2160, 60Hz Display, 2K, 144Hz displays, projected capacitive or resistive touchscreen option |
| CPU | Latest Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™ |
| Memory | Up to 1TB DDR5 RAM |
| Graphics Card | Integrated HD graphic controller or application-specific graphic controller |
| Expansion Slots | Up to 5 |
| Storage | 16x Removable Storage Drives - Up to 80TB |
| Power Supply | 680W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated power supply |
| Dimensions | Height: 14.68" (373mm) Width: 17.15" (435.6mm) Depth: 7.00" (177.8mm) |
| Weight | ~32 lbs (14.5kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
What separates the NetPAC from the rest is its massive storage. This portable computer supports up to 16 removable 2.5″ removable drive bays for a total of 80 TB storage. In addition to massive storage, these hot swappable HDD/SSD make for easy transfer, upgrade, and maintenance.
The NetPAC is integrated with high speed 12Gb/s RAID card and media for the fastest data sequential write performance. It has been designed from ground up to meet the requirements on cooling, massive storage expansion and serviceability.
When you combine the massive storage, high-speed RAID card, and great cooling, the NetPAC simply becomes a powerful network appliance platform. It is an all-in-one portable form factor that can be integrated with high-performance 20G/40G network capture cards. As a result, it is capable of sustained, multi-gigabit per second recording of network traffic without packet drops.
