Featuring three high resolution 17″ displays, and a 16-core Intel Xeon processor, NotePAC III Pro V is ideally suited to Geospatial-Intelligence, C4ISR, drone control and any other application that demands rugged reliable processing power in a highly portable package.
The orientation of the system allows for more ergonomic keyboard placement, and also gives the display system a more solid structure to unfold from. This works particularly well for in-vehicle environments where motion can cause the 2nd and 3rd displays to vibrate.
Connectivity is unparalleled in a portable computer with eight ethernet ports – two of them fiber. Typical uses for the 10G fiber connections include connection to Network Attached Storage (SAN/NAS).
A CAC card reader makes securing access convenient. Three HDMI output ports allow all three of the displays to be duplicated as required in the CIC.
The NotePAC III ProV keeps the powerful performance and integrity of our portable computers while adopting a unique and different design. It utilizes a more notebook-style form factor for a very compact yet versatile design.
This fully rugged, aluminum laptop was built for the military to withstand harsh environments. The NotePAC III ProV meets MIL-STD-810H, MIL-STD-901E, MIL-STD-167-1A, and MIL-STD 461F standards.
The NotePAC III Pro V has plenty of expansion space for removable drives and PCIe expansions. Configurable options include 2x 3/4 length PCIe Slots (x16, x8) for add-in graphics, RAID, Network, or other I/O.

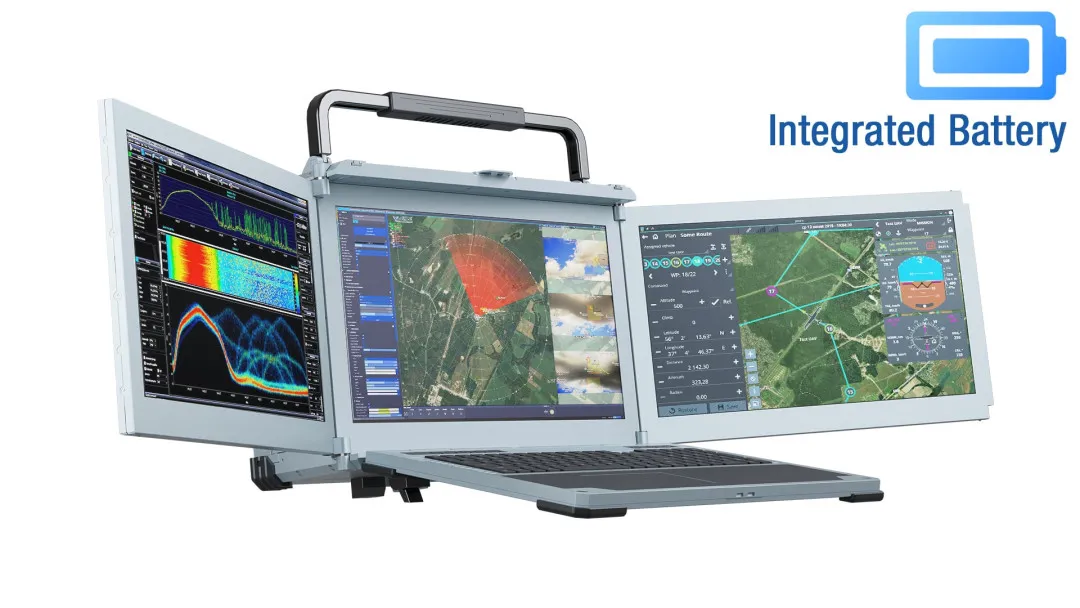

NotePAC III Lite |

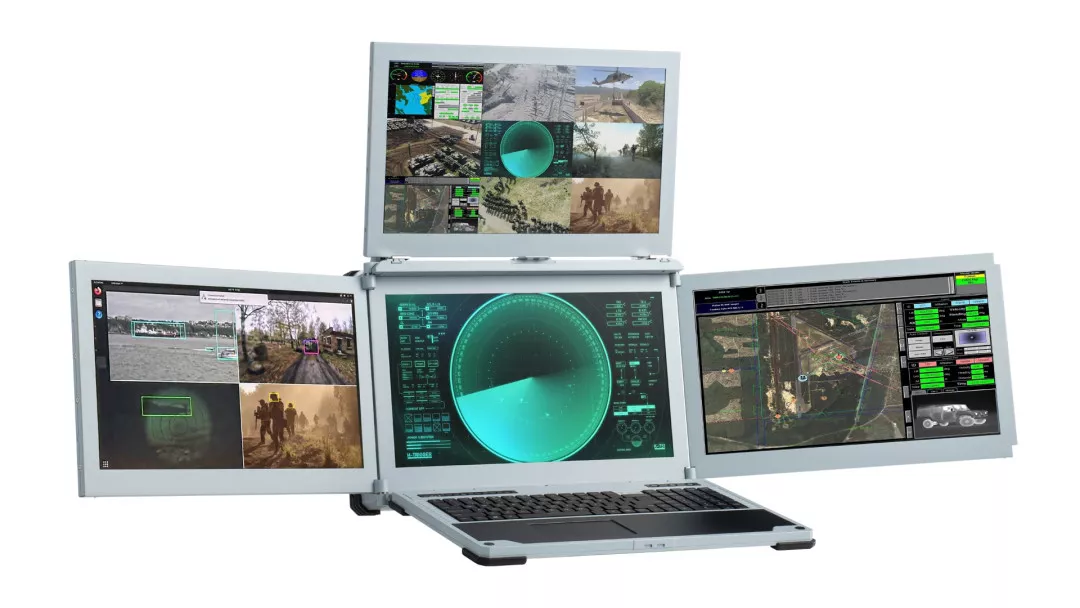

NotePAC IV Pro V |
NotePAC III Pro V |
|
|---|---|---|---|
| Display |

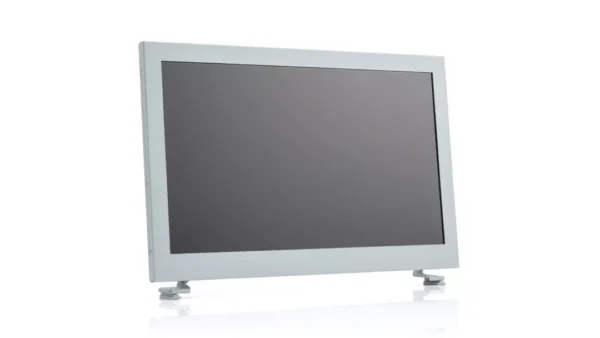

3x 17.3" FHD 1920x1080 Optional 4th display addon |
4x 17.3" FHD 1920x1080 |
3x 17.3" FHD 1920x1080 |
| CPU |
Intel® Core™ i7-13700E Processor Optional Upgrade: Intel® Core™ i9-13900T Processor |
Intel® Xeon® D-2183IT |
Intel® Xeon® D-2183IT |
| Memory |
64GB DDR4 SO-DIMM max |
32GB DDR5 RAM, |
32GB DDR5 RAM, |
| Graphics Card |
Intel® UHD (supports up to 4 displays) |
ASPEED AST2500 |
ASPEED AST2500 |
| OS Drive |
1TB M.2 NVMe, |
1TB M.2 NVMe, |
1TB M.2 NVMe, |
| Storage |
2 standard removable drives |
4 standard removable 2.5" slots for up to 8TB each |
4 standard removable 2.5" slots for up to 8TB each |
| Battery |
2x 14.4V, 6700MAH, 96WH |
6x 10.8V, 9200MAH, 99WH |
6x 10.8V, 9200MAH, 99WH |
| Dimensions |
Height: 6.0" (153mm) |
Chassis dimensions: Battery dimensions: |
Chassis dimensions: Battery dimensions: |
| Weight |
35.3lbs (16kg) with batteries included |
30.9bs (14kg) without batteries |
30.9bs (14kg) without batteries |
| Customization |
Custom I/O and more. |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
| Product | NotePAC III Pro V |
|---|---|
| Display | 3x 17.3" FHD 1920x1080 |
| CPU | Intel® Xeon® D-2183IT |
| Memory | 32GB DDR5 RAM, |
| Graphics Card | ASPEED AST2500 |
| OS Drive | 1TB M.2 NVMe, |
| Storage | 4 standard removable 2.5" slots for up to 8TB each |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, 3x HDMI external clone |
| Battery | 6x 10.8V, 9200MAH, 99WH |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
| Input | 19VDC/31.6A |
| Output | 19VDC |

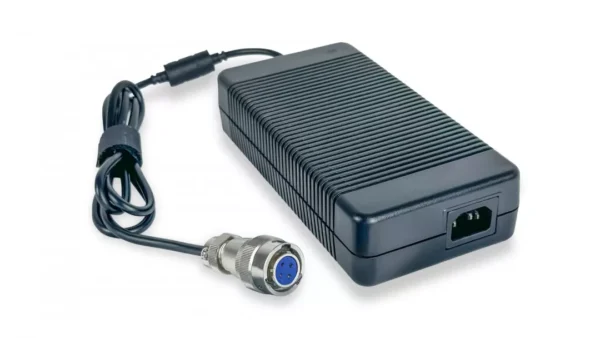

| Charger Specs | Charging voltage: 19V ± 1V, |
| Dimensions | Chassis dimensions: Battery dimensions: |
| Weight | 30.9bs (14kg) without batteries |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |

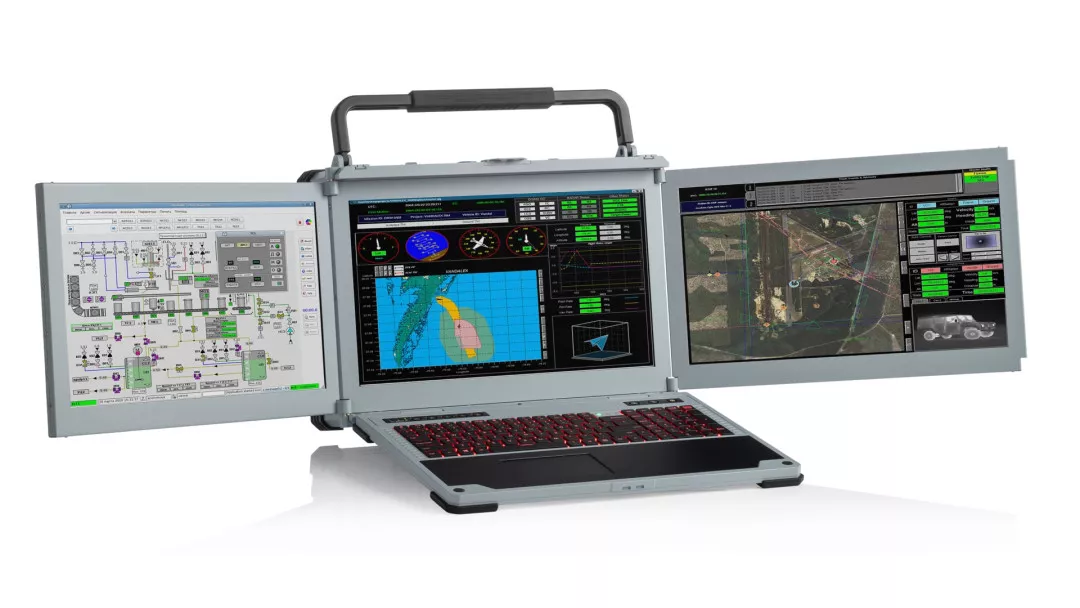

Mil-spec laptop with excellent performance and unrivaled connectivity that comes with three tiltable 17.3″ full HD displays.
Featuring three high resolution 17″ displays, and a 16-core Intel Xeon processor, NotePAC III Pro V is ideally suited to Geospatial-Intelligence, C4ISR, drone control and any other application that demands rugged reliable processing power in a highly portable package.
The orientation of the system allows for more ergonomic keyboard placement, and also gives the display system a more solid structure to unfold from. This works particularly well for in-vehicle environments where motion can cause the 2nd and 3rd displays to vibrate.
Connectivity is unparalleled in a portable computer with eight ethernet ports – two of them fiber. Typical uses for the 10G fiber connections include connection to Network Attached Storage (SAN/NAS).
A CAC card reader makes securing access convenient. Three HDMI output ports allow all three of the displays to be duplicated as required in the CIC.
| Product | NotePAC III Pro V |
| Display | 3x 17.3" FHD 1920x1080 |
| CPU | Intel® Xeon® D-2183IT |
| Memory | 32GB DDR5 RAM, upgradable to 512GB+ |
| Graphics Card | ASPEED AST2500 |
| OS Drive | 1TB M.2 NVMe, upgradable to 4 TB NVMe |
| Storage | 4 standard removable 2.5" slots for up to 8TB each |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, Dual LAN with 10G SFP+ LAN via SoC, Dual LAN with 10Gbase-T, 3x HDMI external clone |
| Battery | 6x 10.8V, 9200MAH, 99WH |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
| Input | 19VDC/31.6A |
| Output | 19VDC |
| Charger Specs | Charging voltage: 19V ± 1V, Charging current: 13A ± 0.5A |

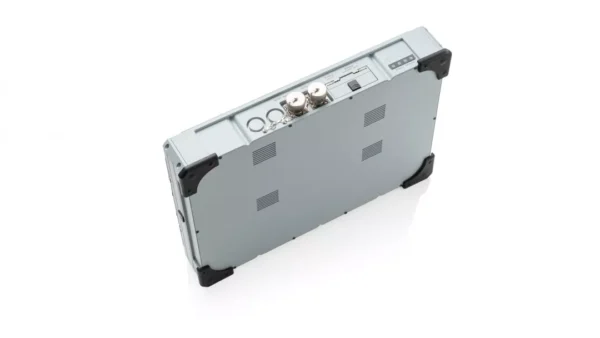

| Dimensions | Chassis dimensions: Height: 13.7" (347mm) Width: 17.42" (442.5mm) Depth: 7.72" (196mm) Battery dimensions: Height: 12.67" (322mm) Width: 17.04" (433mm) Depth: 2.71" (69mm) |
| Weight | 30.9bs (14kg) without batteries Optional battery pack: Additional 6.6lbs (3kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
The NotePAC III ProV keeps the powerful performance and integrity of our portable computers while adopting a unique and different design. It utilizes a more notebook-style form factor for a very compact yet versatile design.

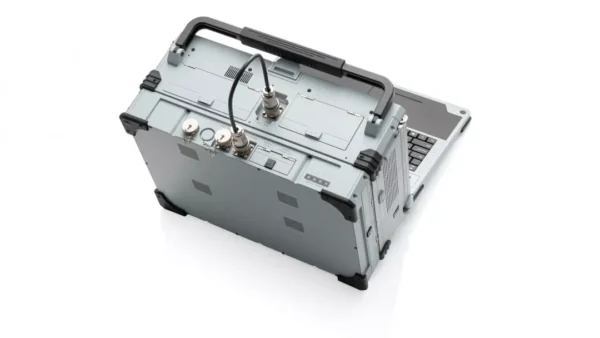

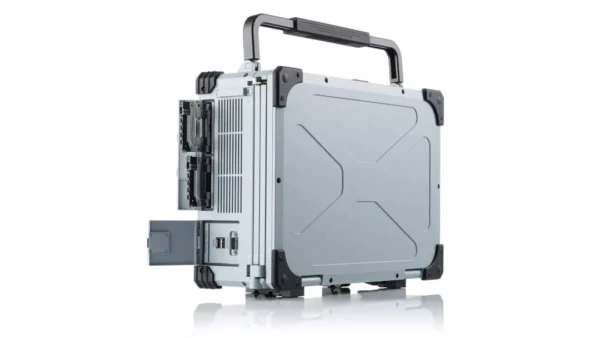

This fully rugged, aluminum laptop was built for the military to withstand harsh environments. The NotePAC III ProV meets MIL-STD-810H, MIL-STD-901E, MIL-STD-167-1A, and MIL-STD 461F standards.

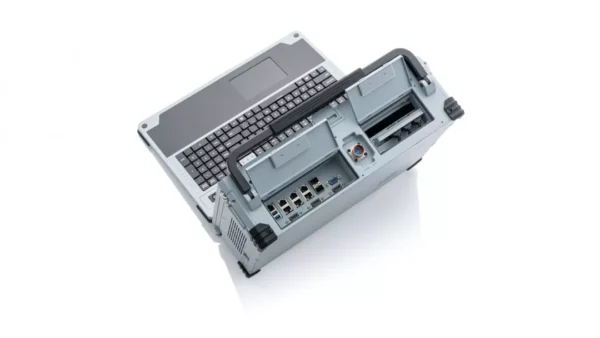

The NotePAC III Pro V has plenty of expansion space for removable drives and PCIe expansions. Configurable options include 2x 3/4 length PCIe Slots (x16, x8) for add-in graphics, RAID, Network, or other I/O.
