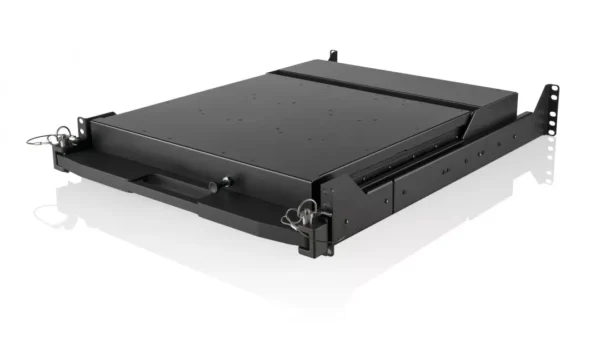

The RMDDU is a rugged 2U rack-mount drawer with dual-screen monitors The displays fold together, rotate, and slide in for storage.
It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.

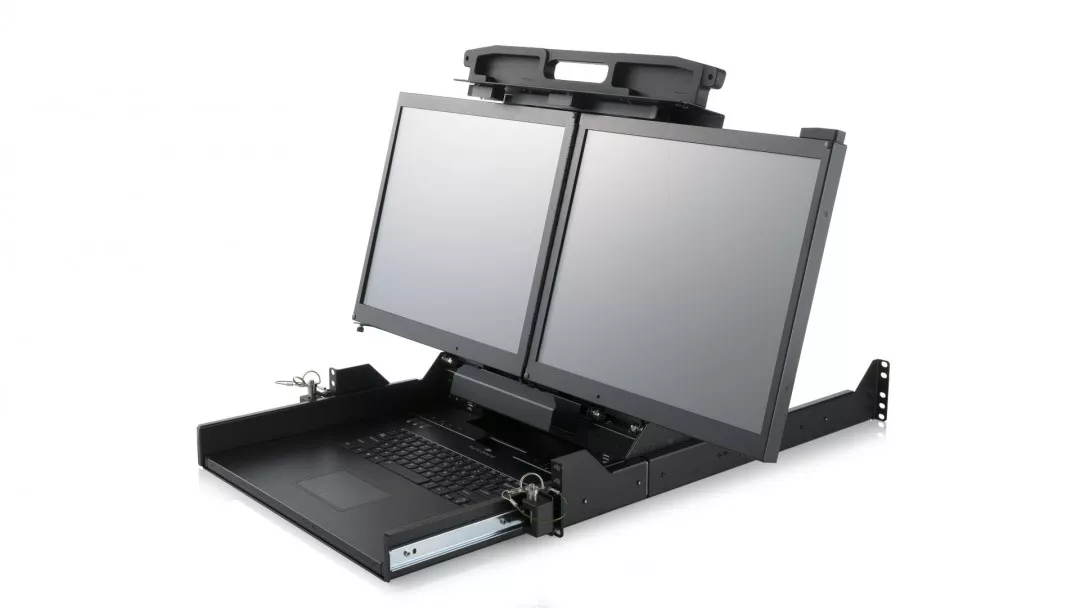

RMDDU 19 |

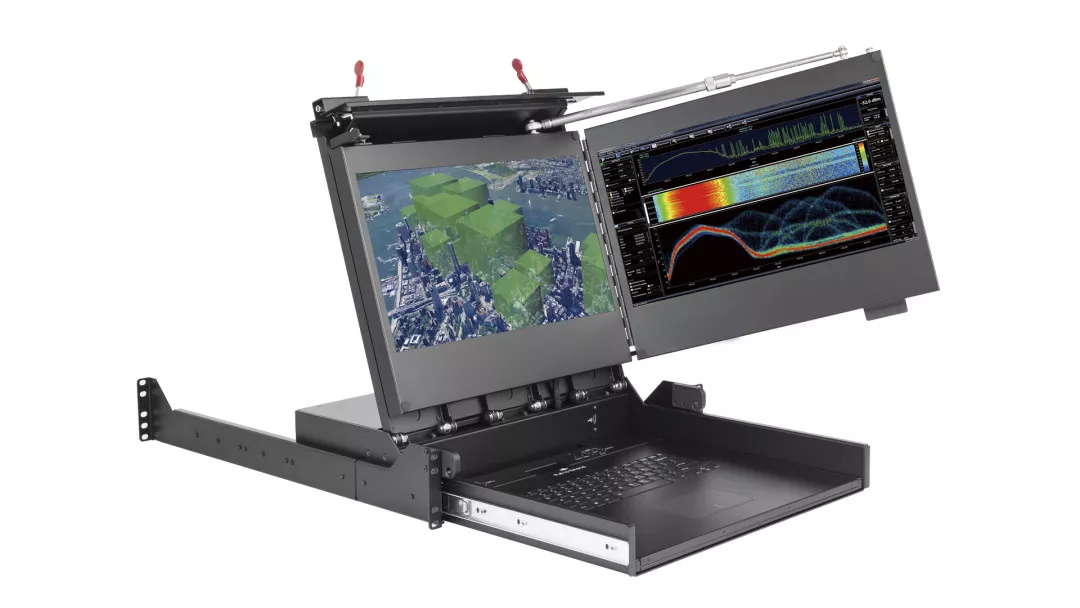

RMDDU 17A |

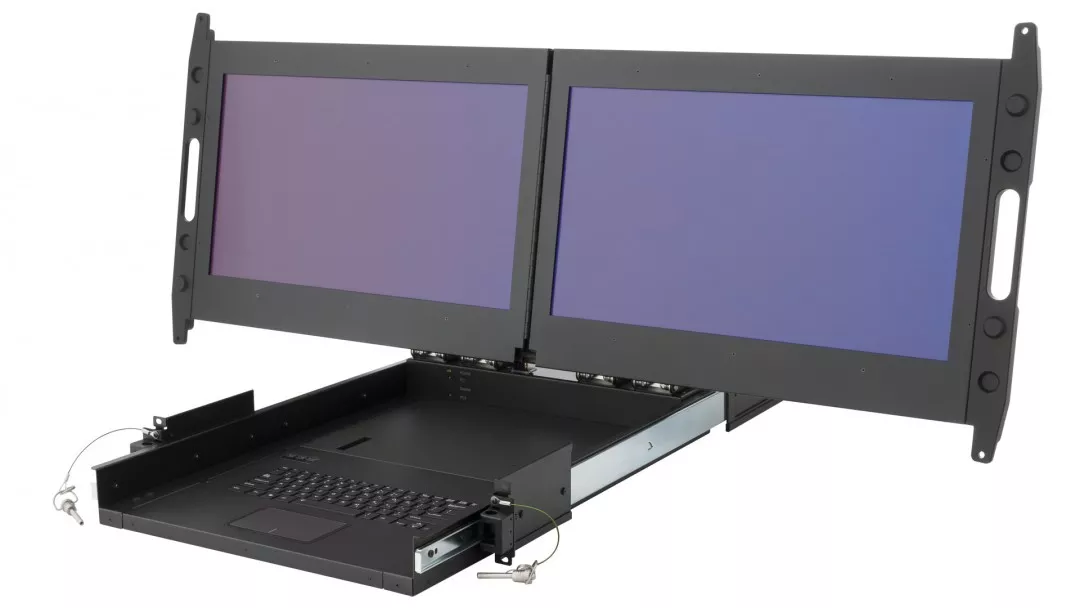

RMDDU 23 |
|
|---|---|---|---|
| Display |
Dual 19" SXGA 1280 x 1024 |
Dual 17.3" Full HD 1920 x 1080, 16:9 Display |
Dual 23" Full HD 1920 x 1080 |
| Viewing Angle |
Displays tilt ~15° from vertical |
Displays tilt ~15° from vertical |
Displays tilt ~10° from vertical |
| Ports |
Internal USB 2.0 hub + 2x USB 2.0 inputs on front + 1x USB 2.0 inputs on rear, |
2x USB pass through inputs on front + 1x USB inputs on rear, |
2x DVI, 2x VGA, and 2x USB (1 set per display) |
| Dimensions |
Height: 2U - 3.46" (88mm) |
Height: 2U - 3.46" (88mm) |
Height: 2U - 3.42" (88mm), |
| Weight |
~45 lbs (20.5kg) |
~42 lbs (19kg) |
~60 lbs (27kg) |
| Customization |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |

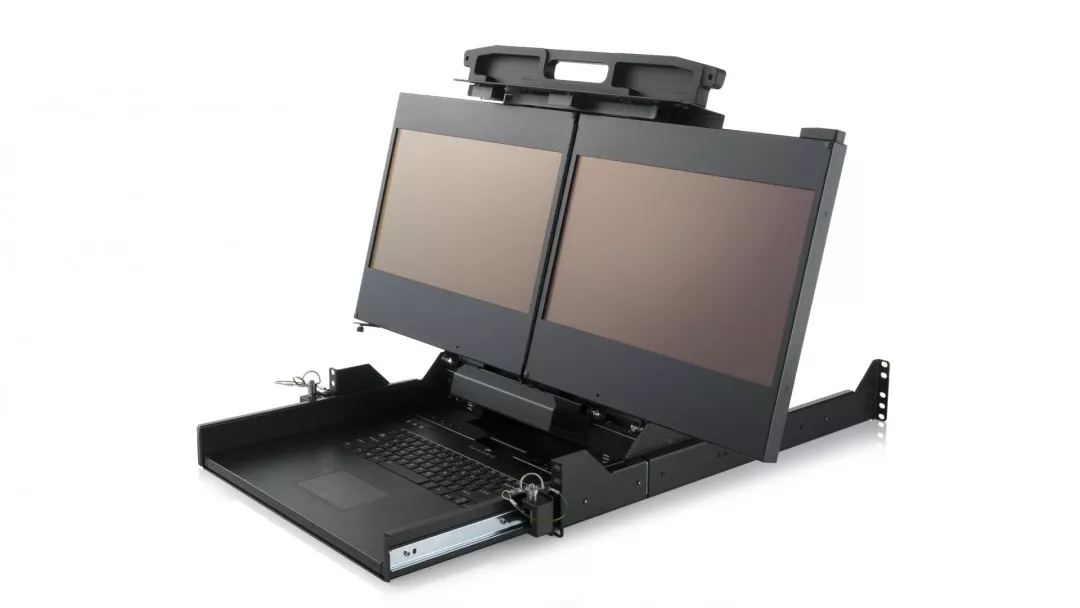

| Product | RMDDU 17 |
|---|---|
| Display | Dual 17.3" Full HD 1920 x 1080, 16:9 Display |
| Viewing Angle | Displays tilt ~15° from vertical |
| Ports | 2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear |
| Dimensions | Height: 2U - 3.46" (88mm) Rack Depth: 24" (609.6mm) |
| Weight | ~42 lbs (19kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
The RMDDU is a rugged 2U rack-mount drawer with dual-screen monitors The displays fold together, rotate, and slide in for storage.
It is an ideal match in military transit case applications and command & control centers. The compact 2U rack-mount display drawer uses a secure all-aluminum monitor mounting and stabilization design necessary for robust government & defense, communications and industrial automation applications.
| Product | RMDDU 17 |
| Display | Dual 17.3" Full HD 1920 x 1080, 16:9 Display |
| Viewing Angle | Displays tilt ~15° from vertical |
| Ports | 2x USB 2.0 inputs on front + 2x USB 2.0 inputs on rear Analog VGA, DVI-D, Display Port |
| Dimensions | Height: 2U - 3.46" (88mm) Width: 17.76" (451mm) Depth: 25.89" (657.6mm) Rack Depth: 24" (609.6mm) |
| Weight | ~42 lbs (19kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
Talk to our specialists about rugged portable solutions tailored to your operational environment.
