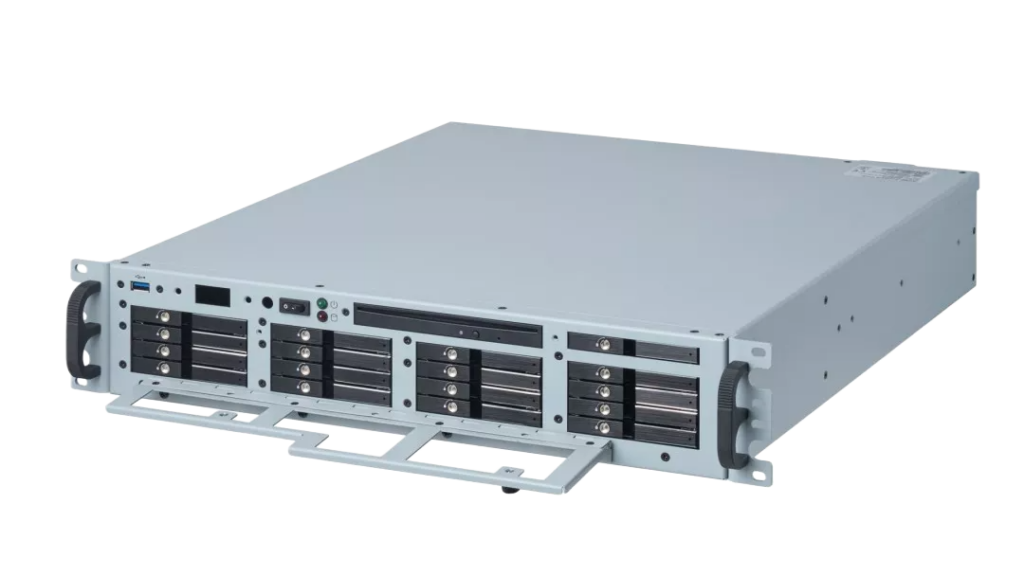

The RMS 200 is a 2U rackmount server with military connectors, ideal for practicing and simulating real-life military experiences.
The RMS 200 is the perfect platform for practicing and simulating real-life military experiences. The gunner can undergo combat situations to better prepare for the future.
It is a MIL-STD portable server designed for data acquisition, simulation, and training. The RMS 200 is integrated with fully sealed Mil-Spec connectors and heavy-duty filters for the harshest of environments. Dual AC and DC power supply with redundant fail-over allows uninterrupted operations both in vehicles and in command tents. It has also been designed to operate in wide temperature ranges, extending its compatibility to more military applications.
| Product | RMS 200 |
| CPU | RMS 200: Dual Intel® Xeon® RMS 200LP: Dual Intel® Xeon® Scalable first gen |
| Memory | 128GB DDR5 (up to 3TB in 12 DIMM slots) |
| OS Drive | 1x 1TB removable |
| Storage | 16x 2TB removable |
| Expansion Slots | RMS 200: Low profile expansion slot supported: (Riser) 1x PCIe 3.0 x16, 2x PCIe 3.0 x8 RMS 200LP: 2x PCIe X16 (LP), 3x PCIe X8 (LP), 1x PCIe X4 (LP) |
| Ports | Option 1: 2x 10GbE, 2x 1GbE, 2x USB, 1x VGA Option 2: 2x 1GbE, 2x USB, 1x VGA |
| Optical Drive | Bluray |
| Power Supply | 800W redundant full range power supply |
| Dimensions | Height: 2U, Width: 18.9", Depth: 19.7" |
| Weight | 29.1 lbs (13.2kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |
The RMS 200 was designed and developed to pack maximum power in a compact form factor. In only a 2U chassis, this unit can fit in almost any rack space while still offering incredibly high computing power.
While compact and powerful, the RMS 200 is also extremely rugged. With waterproof connectors, it is built to meet MIL-STD-810G requirements.
