A robust portable triple display system built using heavy duty metal to provide a tough, go-anywhere unit.
The BCCD is a robust portable triple display system built using heavy duty metal to provide a tough, go-anywhere unit ideally suitable for wide ranges of applications such as computer-aided design, geographic information systems, and professional digital media applications. Built in a compact, lightweight form factor, the BCCD provides excellent displays for simulation and training applications.

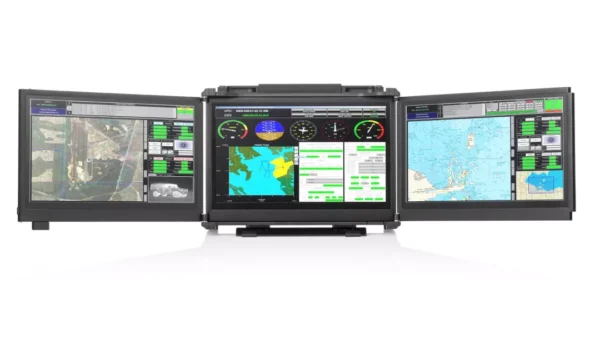

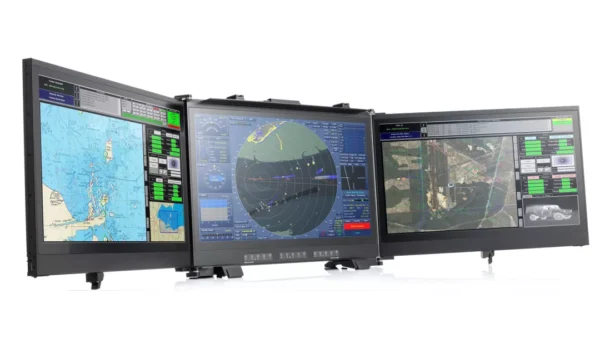

Every BCCD comes equipped with three 1920 x 1080 HD resolution displays and multiple independent DVI/VGA/DP inputs. Its independent triple inputs are fully compatible with most high-performance graphics cards.
The BCCD display can be expanded and retracted fully for transporting and storage. With its rich features and extra-rugged construction to sustain bumps, it is the most durable and efficient triple display solution for your needs.
| Product | BCCD 173 |
| Display | 3x 17.3" FHD 1920 X 1080 resolution (5760 x 1080 display area) |
| Brightness | 300 nits |
| Contrast Ratio | 400:1 |
| Viewing Angle | 170° (Horizontal) x 160° (Vertical) |
| Color | 262K Colors |
| Backlight MTBF | 50,000 Hours under 25±5°C |

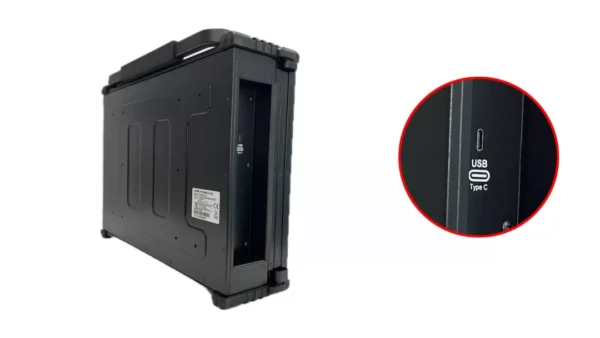

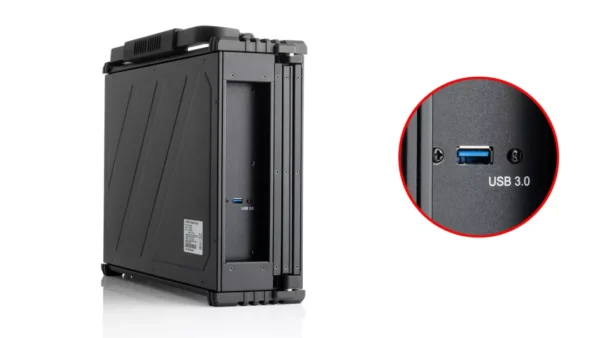

| Ports | USB-A or USB-C |
| Dimensions | Height: 15.67" (398mm) Width: 18.46" (469mm) Depth: 5.6" (142mm) |
| Weight | ~24 lbs (11kg) |
| Battery-powered | Yes |

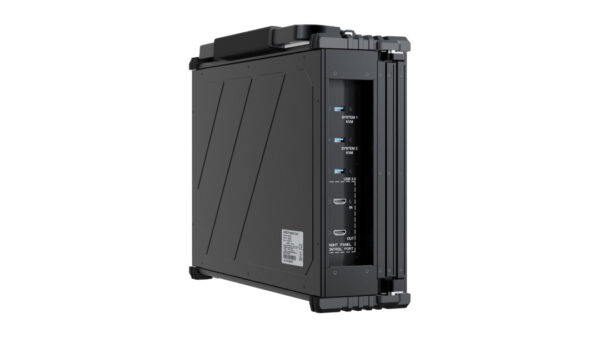

| Optional Features | Optional Multi-touch, KVM, and VESA mount |
| Customization | Military connectors, custom I/O, and more. |
By default, the BCCD is battery-powered by a single battery for maximum portability. For those who desire no battery packs, a system without battery is still optional.
The BCCD displays can be upgraded to have up to 1000 nits displays with an AG/AR (Anti-glare / Anti-reflective) coating to improve viewability in outdoor environments. We also offer projected capacitive touchscreen options.
