23.8″ UHD Display integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

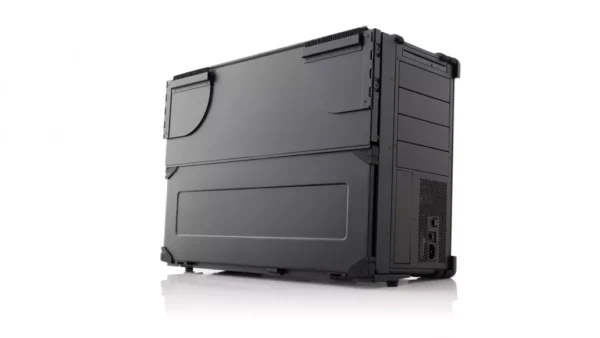

The MegaPAC L1 product is a robust portable computer built using all aluminum sheet metal to provide tough, go-anywhere unit suitable for tough environments and mobile applications. With the 23”, HD LCD display (optional upgrade: 23.8″ 4K Display) and 7-expansion slots design, the MegaPAC L1 can easily fulfill requirement for digital media related applications in the broadcasting market. The MegaPAC L1 can also be configured with many special add-on cards for your unique applications. The integrated visor-shade optimizes viewing when ambient light or sunlight has become distracting. Optional touch screen allows MegaPAC L1 to operate without keyboard for quicker operations.
Every unit comes equipped with cooling fans and easy access to its expansion slots for immediate system upgrade or maintenance. With its functional design and rugged construction, the MegaPAC L1 is the most durable and versatile portable platform for your applications.
| Product | MegaPAC L1 |
| Display | 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen), 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen), 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits) |
| CPU | Latest Single/Dual Intel® Xeon, Intel® Core, Intel® Core™ Ultra, AMD Ryzen™, or AMD EPYC™ |
| Memory | Up to 1TB DDR5 RAM |
| Graphics Card | Integrated HD graphic controller or application-specific graphic controller |
| Expansion Slots | Up to 7 |
| Storage | Up to 150TB (Removable Option Available) |
| Power Supply | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply |
| Dimensions | Height: 15.12" (384mm) Width: 23.11" (587mm) Depth: 9.02" (229mm) |
| Weight | ~40 lbs (18kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |

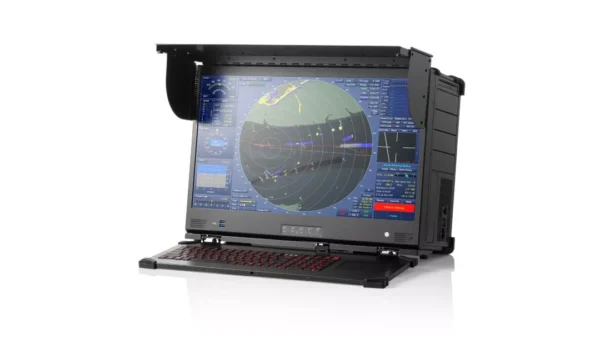

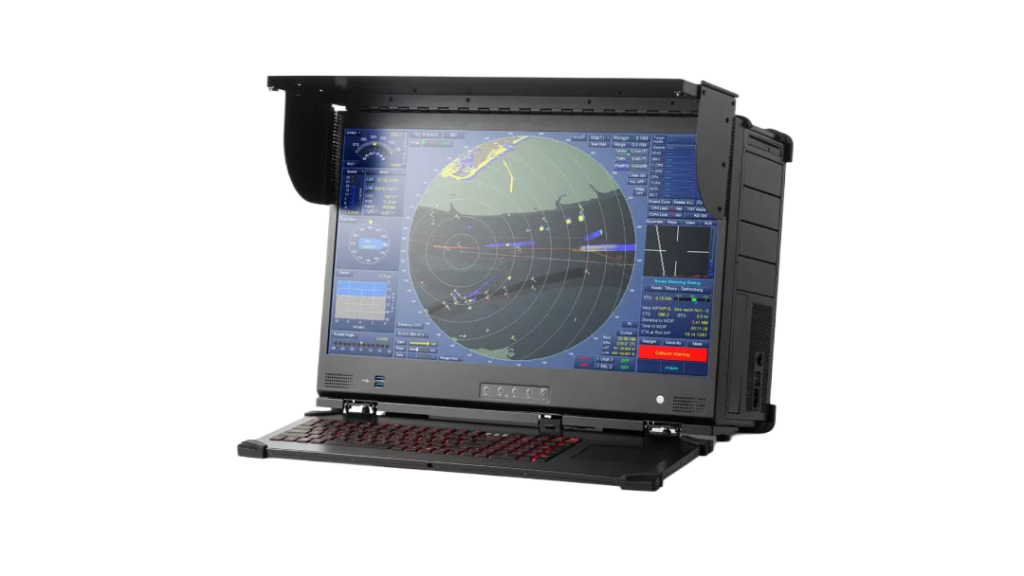

The MegaPAC comes with a 23.8” 16:9 full HD resolution of 1920 x 1080 or higher. The integrated visor-shade and high contrast ratio optimizes viewing in ambient light. Overall, the large, wideview display with low latency, high contrast ratio, and visor-shade allow the user to see details that would have otherwise been overlooked.

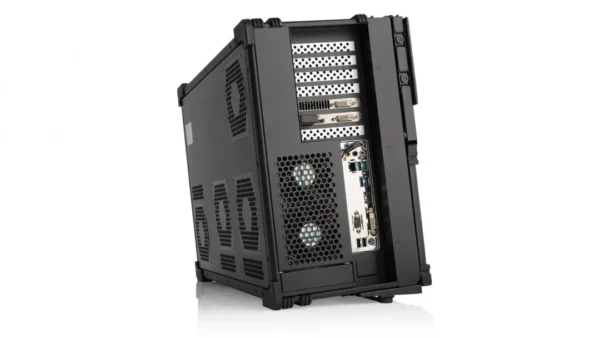

In addition to its large display, every unit comes with cooling fans and easy access to its 7 full-length expansion slots for immediate system upgrade or maintenance.
