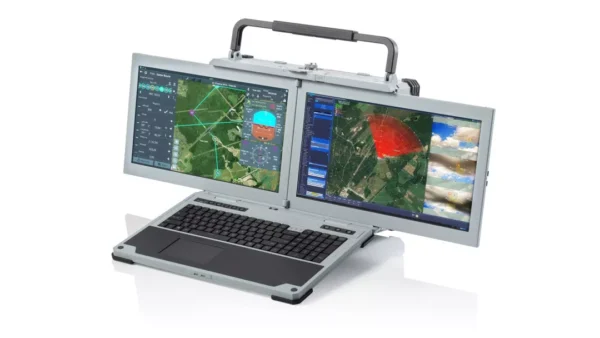

Mil-spec laptop with excellent performance and unrivaled connectivity that comes with two 17.3″ full HD displays.
Featuring two high resolution 17″ displays, and a 16-core Intel Xeon processor, NotePAC II Pro V is ideally suited to Geospatial-Intelligence, C4ISR, drone control and any other application that demands rugged reliable processing power in a highly portable package.
Connectivity is unparalleled in a portable computer with eight ethernet ports – two of them fiber. Typical uses for the 10G fiber connections include connection to Network Attached Storage (SAN/NAS).
A CAC card reader makes securing access convenient. Three HDMI output ports allow all three of the displays to be duplicated as required in the CIC.
| Product | NotePAC II Pro V |
| Display | 2x 17.3" FHD 1920x1080 Upgradable options: UHD 3840x2160, 60Hz Display, 2K, 144Hz displays |
| CPU | Intel® Xeon® D-2183IT |
| Memory | 16GB DDR5 RAM Upgradable to 32GB+ |
| Graphics Card | NVIDIA Quadro P4000 |
| OS Drive | 512GB OS Drive |
| Storage | 1TB Data Drive (Total of 4 removable hard drive cages) |
| Ports | Quad LAN with Intel® Ethernet Controller I350-AM4, Dual LAN with 10G SFP+ LAN via SoC, Dual LAN with 10Gbase-T, CAC reader, 3x HDMI external clone |
| Power Supply | 600W, 100~240 VAC External AC-DC Adapter |
| Optional Addons | 6x 10.8V, 7,500mAh, 81Wh Batteries |
| Input | 19VDC/31.6A |
| Output | 19VDC |
| Charger Specs | Charging voltage: 19V ± 1V, Charging current: 13A ± 0.5A |
| Dimensions | Chassis dimensions: Height: 6.0" (153mm) Width: 17.2" (437mm) Depth: 13.2" (335mm) Battery dimensions: Height: 12.67" (322mm) Width: 17.04" (433mm) Depth: 2.71" (69mm) |
| Weight | 26.5lbs (12kg) Optional battery pack: Additional 6.6lbs (3kg) |
| Customization | Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more. |

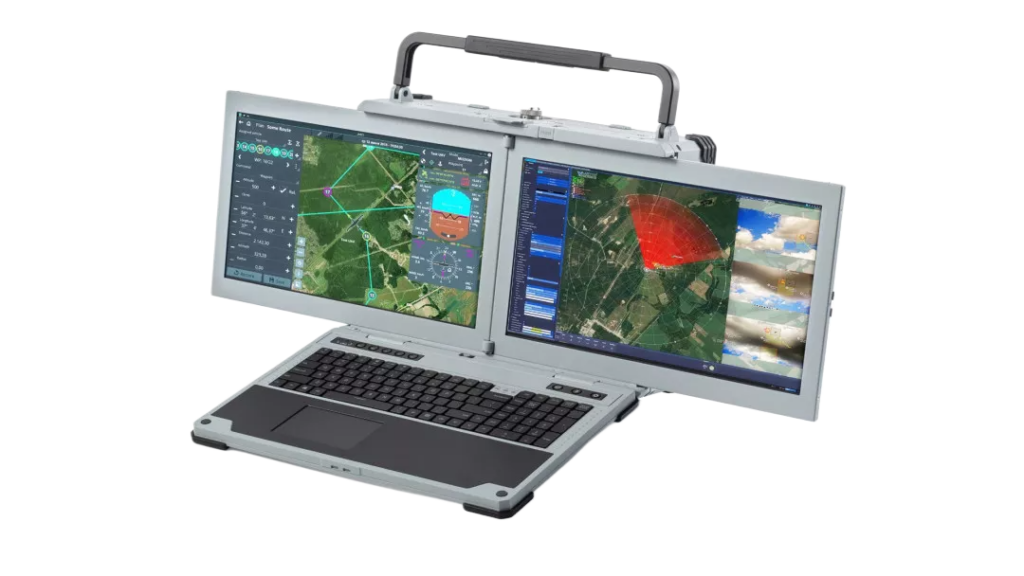

The NotePAC III ProV keeps the powerful performance and integrity of our portable computers while adopting a unique and different design. It utilizes a more notebook-style form factor for a very compact yet versatile design.
This fully rugged, aluminum laptop was built for the military to withstand harsh environments. The NotePAC III ProV meets MIL-STD-810H, MIL-STD-901E, MIL-STD-167-1A, and MIL-STD 461F standards.
The NotePAC III Pro V has plenty of expansion space for removable drives and PCIe expansions. Configurable options include 2x 3/4 length PCIe Slots (x16, x8) for add-in graphics, RAID, Network, or other I/O.
